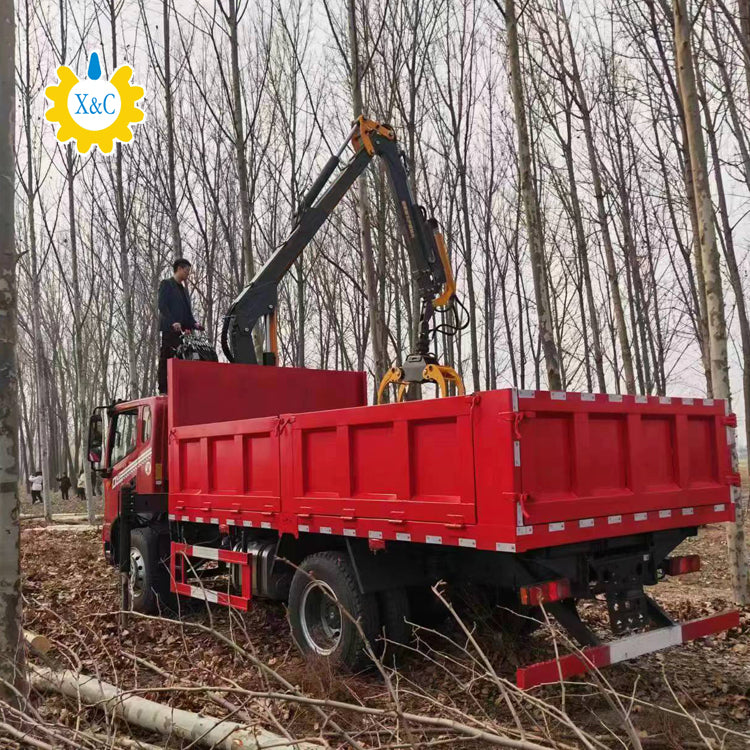

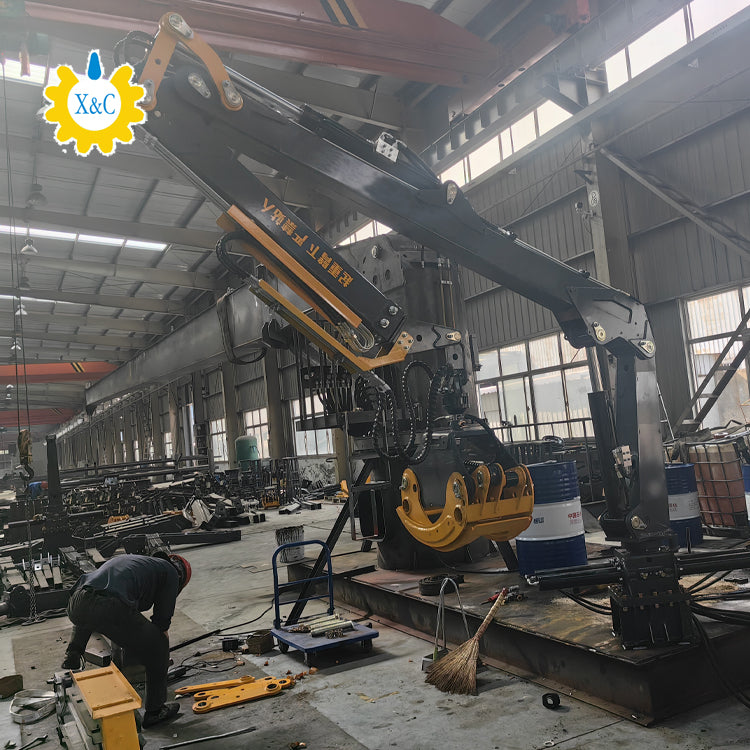

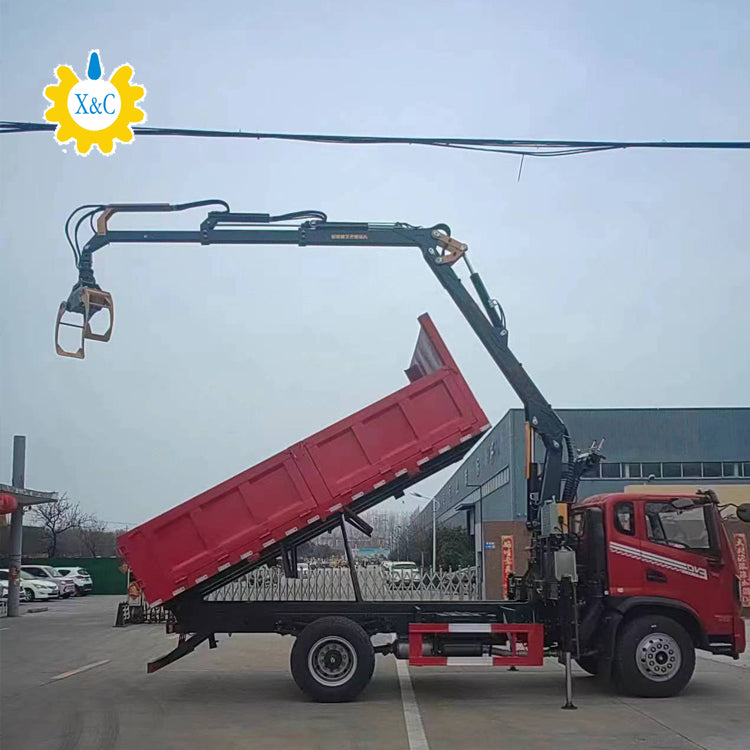

timber grab TruckMZ-7800

MZ-7800

Arm extension length

7.8m （Two telescopic arms）

Grab weight at arm span of 2 meters

2800kg

Column rotation torque

13KN.m

Column rotary structure

Flange+Welded box rack hydro-cylinder slewing support

《Gear + rack adopts partial carburizing process》

 rotating hydraulic cylinder number

4（Oil seal imported from Italy）

Rotation angle

left190°+right190°\angle of revolution380°

H-type outrigger

2 hydraulic outrigger（Can be equipped with different structural legs according to the vehicle）

Grabber

360°unlimited rotation

Arm form

Two section foldable  Two section retractable

Total Weight

1700 kg

Installation space

650 mm

Arm full extension 7.8 m grabbing

710kg

Hydraulic system flow

50 L/min

Recommended power

15KW

Random accessories according to different installation requirements

All aluminum hydraulic oil tank,High-power 150-liter radiator (temperature-controlled automatic start and stop), high-pressure oil pump,

2 hydraulic outriggers、2 hydraulic locks、mounting bolts、mounting plate。
