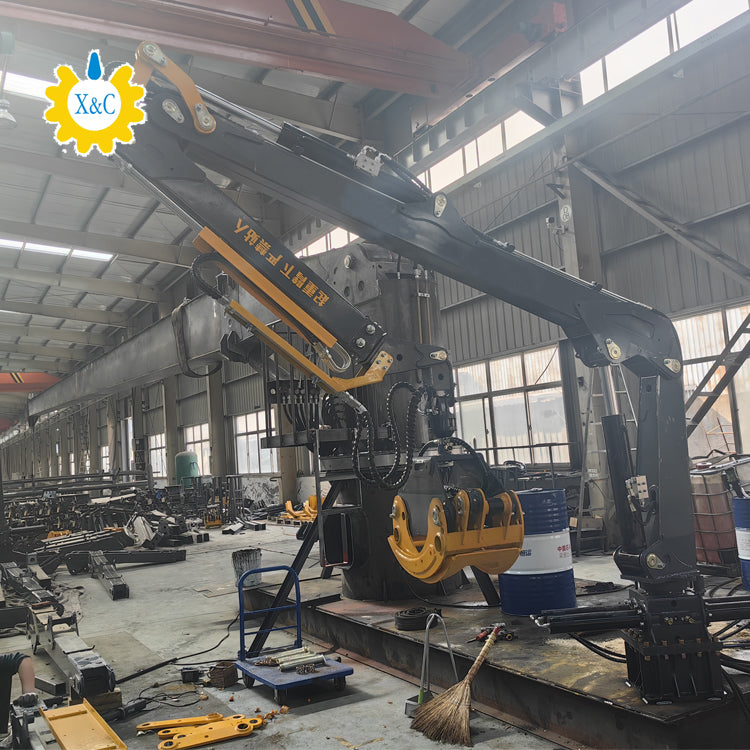

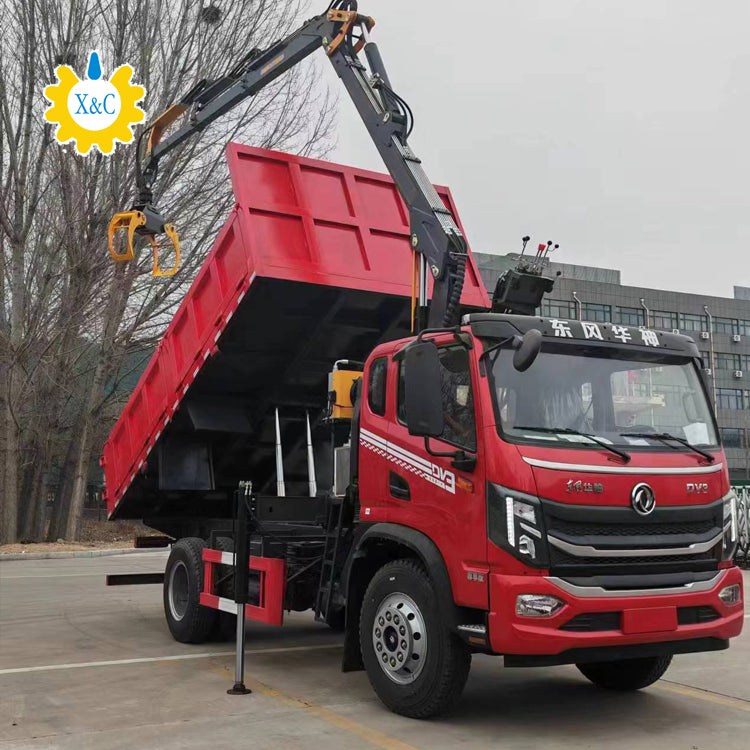

timber grab Truck MZ5200

MZ-5200

arm length(m)

5.2m (A telescopic arm)

Lifting capacity at 2 m(kg)

1800kg

Column rotation torque(KN.m)

11KN.m

Column Slewing structure

Flange type+welded box rack oil cylinder slewing support 《Gear+rack adopts local carburization process》

number of rotating cylinders(pcs)

4

rotation angle

Left 190 °+Right 190 ° \ Rotation angle 380 °

H-type ram

2 hydraulic ram (different structural ram can be equipped according to the vehicle)

Grapple

360 ° unlimited rotation

Arm form

Two foldable sections, one scalable section

Total weight(kg)

870 kg

Installation Space

500 mm

Lifting capacity at full length 5.2m (kg)

650kg

hydraulic oil flow (L/min)

40 L/min

Power(kw)

11KW

Random accessories according to different installation requirements

All aluminum hydraulic oil tank, high-power 150-liter radiator (temperature controlled automatic start stop), high-pressure oil pump,

2 hydraulic hydraulic ram, 2 hydraulic locks, installation bolts, and installation plates.
