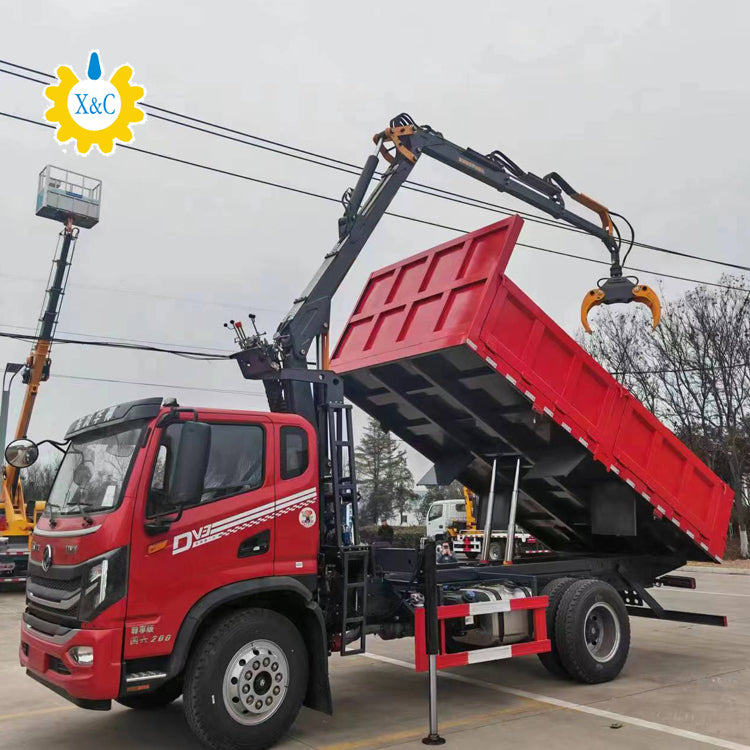

timber grab Truck Mounted MZ-6800

MZ-6800

Extended arm length

6.8m（One-section telescopic arm）

Catch weight at 2m arm span

2800kg

Column rotation torque

13KN.m

Column rotary structure

Flange type + welded box rack cylinder slewing bearing"Gear + rack adopts partial carburizing process"

Rotary Cylinder Quantity

4 sticks(oil seal imported from Italy)

Rotation angle

Left 190°+right 190°\rotation angle 380°

H-shaped outriggers

2 Hydraulic Outriggers(Different structural outriggers can be equipped according to the vehicle)

Grabber

360°Unlimited rotation

Arm type

Two sections foldable、a stretchable

Machine weight

1500 kg

Installation space

650 mm

Arm full extension 6.8m grabbing

810kg

Hydraulic system flow

40 L/min

Recommended power

15KW

Random accessories according to different installation requirements

All aluminum hydraulic oil tank、High Power 150 L Radiator（Temperature control automatic start and stop）、High pressure pump、

Hydraulic outriggers 2 pieces、2 Hydraulic locks、Mounting Bolts、Mounting board。
