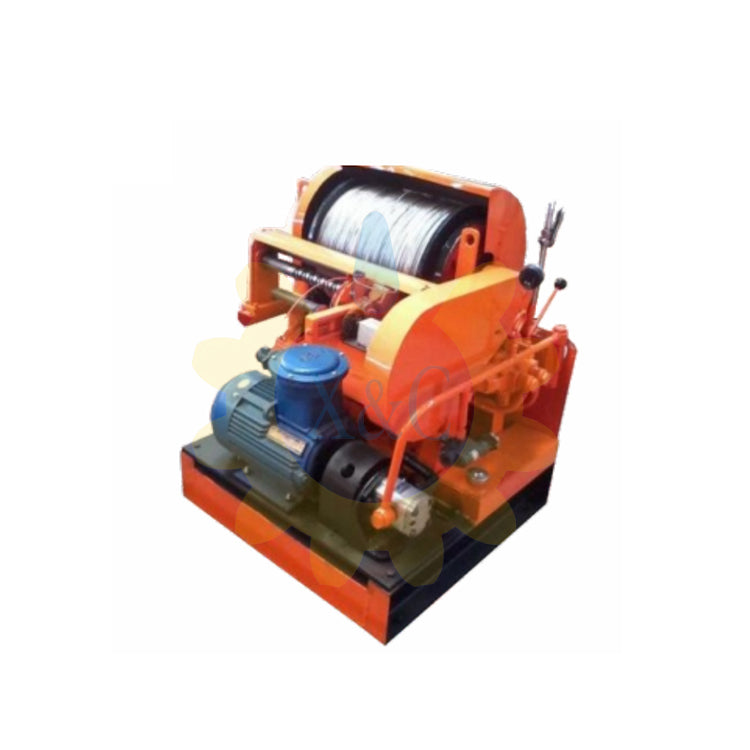

Discover the CJ 6000F logging winch, designed for heavy-duty timber lifting and transport. Reliable and durable, perfect for forestry and logging applications.
| Techincal Parameters | ||||
| Model | CJ6000F | CJ9000F | ||
| Depth | 6000M | 9000M | ||
| Power | 7.5KW | 11KW | ||
| Pressure | ≤15.7MPa | ≤15.7MPa | ||
| Max Lifting Force | 4077N | 4077N | ||
| Wire Diameter | φ2.5mm | φ2.5mm | ||
| Type | Gear variable speed plus hydraulic stepless variable | Gear variable speed plus hydraulic stepless variable | ||
| Speed | gears | Maximum speed(r/min) | gears | Maximum speed(r/min) |
| Ⅰ | 91 | Ⅰ | 91 | |
| Ⅱ | 170 | Ⅱ | 170 | |
| Overall Dimension | (mm)=895*920*975 | (mm)=1090*900*1150 | ||
| Connecting Diamention | (mm)=800*655*φ20 | (mm)=810*800*φ20 | ||
| Weight | 800kg | 950kg | ||
